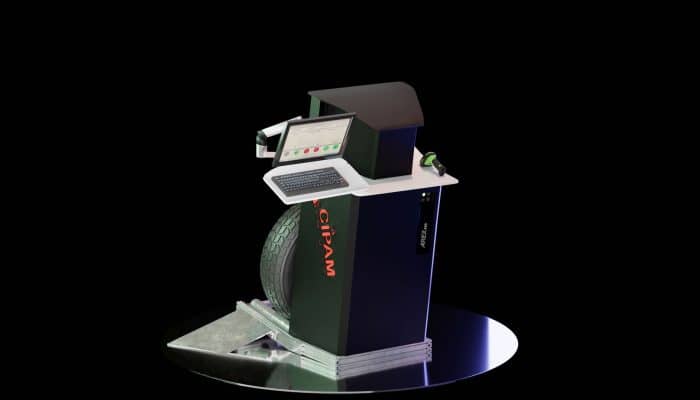

Introducing Tyromark
The cutting-edge laser marking machine from CIPAM, designed to optimize your retread tire marking process.
- Eliminate manual tasks
- Reduce costs
- Enhance the overall quality
- Traceability of your retreaded tires
Learn how Tyromark can transform your operations.
Advantages of Tyromark

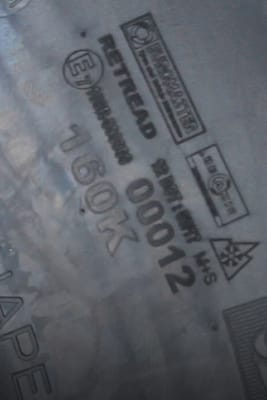

Durable and Permanent Marking
Laser engraving provides a permanent marking solution that cannot be removed or damaged easily.Pork belly portland fingerstache pitchfork dreamcatcher, retro lo-fi deep v chillwave fixie kitsch bitters.
High Precision & Consistent Quality
Automated laser technology ensures uniform and clear marking, regardless of tire dimensions or operator input, improving product aesthetics and traceability.
Cost-Effective Operation
Reduces operating costs by minimizing manual labor and eliminating consumable costs, enhancing your return on investment.

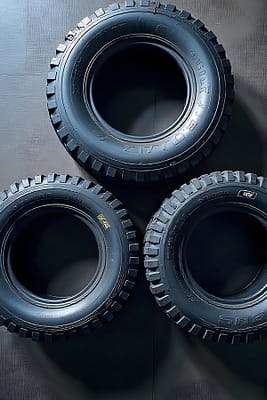

Adaptability
Tyromark can be easily adapted to different tire types (trucks, tourism, off-road…) and applications (retreading, civil engineering…).

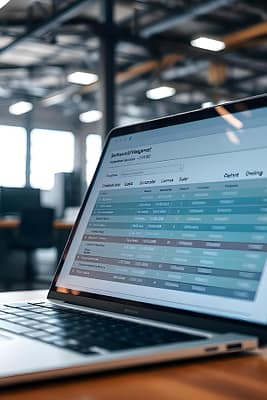

Enhanced Traceability
The precise laser marking improves the traceability of retreaded tires, enabling better management of inventory and compliance with regulatory standards.

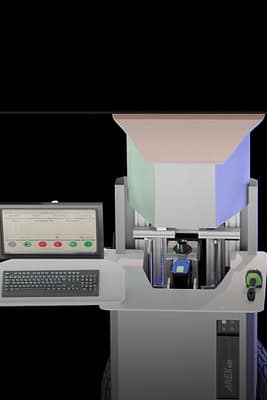

Operational Efficiency
The HMI system helps optimise the marking process and helps reduce production time and increase throughput.
Price starting from
49 000 €
standard purchase
Price starting from
995 €
Monthly installments
60 months option
Subject to acceptance of your credit application by our partners
Fiber Laser Technology
Accurately engrave a variety of marks directly onto the tire including:
- Text, logos and graphics
- 2D codes, DOT Date Codes
- Regulatory markings such as E4 and M+S
Options of 10W, 20W, 30W, and 50W, ensuring robust and fast marking, offering a long lifespan up to 50,000 hours.
WIDE RANGE OF MARKING
50,000 HOURS LIFESPAN
Highest possible performance
Tyromark is engineered to provide the highest possible performance with maximum reliability and safety. Designed with productivity and ease of use in mind, Tyromark offers a superior laser marking experience for businesses of all sizes. Contact us today to discuss how Tyromark can optimize your tire marking processes.
What You Get With with Tyromark
Advanced Laser Marking Machine
A robust, standalone unit with a compact and mobile design, engineered for precision and durability in the tire retreading environment. The machine is fully enclosed, ensuring that it complies with Class 1 laser safety standards.
Integrated Control System
A user-friendly Human Machine Interface (HMI) featuring a 22-inch touch screen. This system provides real-time monitoring, database connectivity, and intuitive controls to manage the entire marking process. The machine also has an optional barcode reader which enables data driven marking, and further enhances accuracy and control.
Customizable Marking Capabilities
Tyromark allows you to engrave a wide range of permanent marks directly onto tires, including text, logos, graphics, 2D codes, DOT date codes, and all other regulatory symbols, enabling you to create a product that can meet both your customer's and your compliance needs.
Precision Marking Head
An automatically positioning head with a variable focus system, capable of accurately targeting the tire surface and ensuring consistent, high quality markings every time. The machine has a visible laser window to ensure proper targeting of all the elements.
Support and Maintenance
The Tyromark includes a complete installation, commissioning and training package designed to get you up and running as quickly as possible. The team at CIPAM are also available to provide ongoing maintenance and technical support to ensure peak performance at all times.
Optional Accessories
Tyromark is designed to be compatible with a range of options which can enhance its performance and integration into existing production systems, including a fume extraction system, a barcode reader, and full remote diagnostic support.
Tyromark Story
A tread manufacturer approached us with the idea of offering a laser marking machine for retreaded tires to users of their products – their licensees. The goal was to improve the quality of regulatory markings.
Indeed, the market already had fully automated machines for high-volume retreading units, but there was nothing for small and medium-sized retreading plants.
Based on a quick set of specifications, CIPAM therefore designed and developed a prototype, demonstrating its ability to innovate in this field.
The study was conducted with our own funds and allows a large proportion of retreaders to benefit from laser technology.
Our first TYROMARK was created in less than a year and has been installed in several European countries (Finland, Sweden, Croatia, France…).
Goodbye aluminum plates, adhesive, and other “old-fashioned” marking consumables !
Hello savings, waste reduction, and long-term reliability !
Detailed Technical Specifications
Laser Source Options:
- FIBER Laser: Delivers high power output with options from 10W to 50W. This ensures rapid and precise marking on a wide variety of tire materials and is ideal for high-throughput operations. The wavelength ranges from 1060 to 1080 nm, enabling optimal laser-material interaction. Offers a long lifespan with an average of 50,000 operating hours.
- CO2 Laser: A highly flexible laser source available in 10W and 30W options, ideal for softer materials and specific marking needs. The CO2 laser provides a wide range of possibilities while providing a life span of around 25000 hours.
Marking Head: Designed for optimal precision and control
- Automatic Positioning: Moves automatically and accurately to the defined marking area.
- Precision Targeting: Highlights the marking area with a safety window for accurate placement of laser marks.
- Variable Focus: Enables marking on various tire surfaces and contours.
Marking Area Dimensions
- Standard marking area: 100 x 100 mm.
- Option for larger marking area: 140 x 140 mm.
Tire Size and Weight Compatibility
- Diameter Range: Handles tires ranging from 650 mm to 1400 mm in diameter.
- Weight Range: Supports tires weighing from 20 kg to 200 kg.
Material and Construction: Built with robust materials to endure industrial conditions, with covers and boxes to protect sensitive parts.
Human-Machine Interface (HMI)
- 22″ Touch Screen: Intuitive and user-friendly control panel for easy operation.
- Real-time Monitoring: Provides live data on the marking process, status of the machine and its components.
- Network Connectivity: Compatible with databases via Ethernet for seamless data transfer and operational management.
Laser Class and Safety
- Class 1 Laser: Complies with Class 1 laser safety standards once the machine is fully enclosed and operational, ensuring user safety.
- Safety Features: Includes a locking system to prevent operation while the machine is opened and emergency stop buttons for immediate shutoff in case of a problem.
Environmental Considerations
- Operating Temperature: Suitable for environments ranging from 10°C to 55°C.
- Noise Level: Operates with a noise level of less than 60 dBc.
Axis System
- Linear Axes: Dual linear axes (X and Z) for precise control of marking head position.
- Optional Rotation: Optional rotary axis for marking on cylindrical surfaces.
Power Requirements: 230 VAC, 50/60 Hz (Single Phase)
Additional Features
- Optional Fume Extractor : The machine can be connected to an external fume extraction system to remove residues.
- Optional barcode reader: Can be integrated for automatic data processing.
